Used tire cutting machine for sale /Rubber cuting machine for making rubber powder with CE certificate

FOB Reference Price:Get Latest Price
$19,999.00 - $79,999.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Tire Machine
Place of Origin:
Henan, China
Brand Name:
Huarui
Tire Machine Type:
Tire Recycling Machine
Model Number:
XKP400,450,560,560L Rubber machine/ Rubber cuting machine
Voltage:
380V
Power(W):
55kw
Dimension(L*W*H):
4.0*2.0*1.8m
Weight:
15-25ton
Certification:
CE, ISO certification
Warranty:
2 years, 2years
Function:
making 5-40mesh rubber powder
Using life:
more than 15 years
Advantage:
energy saving 30%
Raw materials:
nylon tires and rail tyre
Color:
optional
Raw material:
Waste Tyre, plastic or rubber
End product:
Rubber powder, nylon fiber, steel wire
Machine Type:
Fully Automatically
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
sea worthy or as required
Port
Qingdao
Lead Time :
Shipped in 20 days after payment

Used tire cutting machine for sale /Rubber cuting machine for making rubber powder with CE certificate





Why more and more people are willing to invest this new project?



As we all know, rubbish (such as waste tire,  waste rubber etc.) are increasing everyday



How to dispose of these waste?



At the same time, natural rubber resources are decreasing everyday



How to deal with the problem?



We use green technology (waste rubber regeneration line)  recycling waste to resource



Our waste tire recycling production line is used to produce the waste tyre into rubber powder or rubber crumb. It can treat both radial tyre and nylon tyre, get rid of the nylon or steel in the waste tire.





Brief introduction to tire recycling line





With waste tire, rubber soles, waste pipe and other waste rubber as raw materials, through separation and fragmentation process, rubber crusher can make the rubber into particles to achieve the recycling of the waste rubber. These particles can be used in the construction of airport runway, stadium runway and highways. It can also meet more purpose by mixing into raw rubber. Besides, the rubber crusher can process the steel and nylon fiber from the rubber powder. The rubber powder has different sizes, which can meet the different needs of the market. Compared with other rubber machines, our company’s rubber recycling machine can save 1/3 energy.



Process flows:

waste tires--- circle cutting--- strip cutting--- slicing cutting--- magnetic separating--- separation—packaging—put in storage.



Tyre crusher/rubber crusher with auxillary equipment:



1. Tire ring cutting machine



Tire ring cutting machine is an alone accessory machine, it puts the tire which is greater than 650 type (both nylon and steel wire) flat on the machine, locking tire inside opening through up and down locking system, then putting alloy tools to target to the place of disintegration of tire to cut off the mouth and nation of tire, finished in 3 minutes. The power is 4kw; revolting speech is 40r/min, Shape dimension: 1.8m*1.3m*1.6m.



--1. QQJ-40 Tire Ring Cutting Machine

Name

Technical parameter

Motor power

4 KW

Capacity

40pcs/h

Work range

Diameter 650-1250 mm

 L*W*H

1.8m*1.3m*1.6m

Weight

650 kg









2. Tire strip cutting machine



Tire strip cutting machine make use of two round special cutting tools to combination running cutting. It can cut the tire of circle cutting into 3-8mm wide strip, to use for dicer cutting. The material of this machine’s knife disk is special alloy structural steel (scientific name: Nine-chrome-silicon), diameter of knife disk isΦ390mm, hardness is 58-62GrS, more durable. With the hand grinding wheel cast when not sharp, power is 4kw, revolting speech is 45r/min, shape dimension: 1.3m*0.8m*1.65m.





--2. QTJ-390 Tire Strip Cutting Machine

Name

Technical parameter

Motor power

4 KW

Capacity

2500kg/h

Motor speed

45r/min

L*W*H

1.3m*0.8m*1.65m

Weight

850 kg

Specification of cutting strip

3-8cm wide strip









3. Tire block cutting machine



Tire block cutting machine is prepared for the crush of host machine, Not only it makes the cutting strip-type waste rubber cut into about 3*8cm small pieces, but also can enter into host machine again through mutual use between sword and fixed knife, convenient to feed, high output and won’t damage roller easily, power is 5.5kw, revolting speech is 380r/min,shape dimension: 1m*0.8m*1.4m. To pay attention to the space between sword knife and fixed knife when the machine is in operation, best to keep at around 0.1mm, so that the steel wire can be cut off.





--3. QKJ-358 Tire Block Cutting Machine

Technical parameter

Common tire slice cutter

Updated tire slice cutter

Motor power

5.5 KW

18.5KW

Capacity

800kg/h

1300 kg/h

Specification of cutting slice

3*5*8cm

3*5*8cm

L*W*H

1.0*0.8*1.4m

1.3*1.1*1.5m

Weight

800 kg

1200kg







4. Steel wire separator



The main working part of this machine is two relative rotary roll shafts with the same speed. When tire circle cut into the middle of two rollers, it will be extruded by roll shaft, at the same time, be squeezed, Sheared and tear by the two relative rotary rollers. And finally complete the separation of the steel wheel by many times.





--4. SWS-100 Steel wire separator

Name

Technical parameter

Motor power

11 KW

Capacity

100pcs/h

L*W*H

1.2*1.4*1.4m

Weight

1300 kg

Function:

Used to separate the steel wire of tire circle.

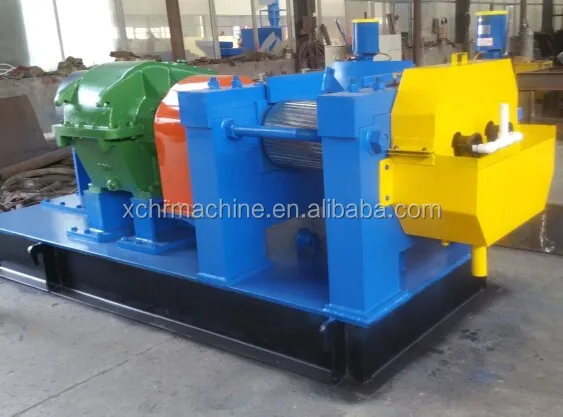

5.Tire Crusher



Model No.

XKP-350

XKP-400

XKP-450

XKP-560

XKP-560L

Diameter of front roll

300 mm (groove)

400 mm (groove)

450 mm (groove)

560 mm (groove)

560 mm (groove)

Diameter of back roll

300 mm (groove)

400 mm (groove)

450 mm (groove)

510 mm (groove)

560 mm (groove)

Drum working length

500mm

600mm

760mm

800mm

1000mm

Front roll liner speed

26.2m/min

34.5 m/min

38.0 m/min

40.6m/min

44m/min

Roll ratio

1:2.5

1:2.5

1:2.5

1:2.5

1:2.5

Max roller spacing

10mm

10 mm

10 mm

10 mm

10mm

Motor power

30KW/37KW

45KW/55KW

55KW /75KW

75KW/90KW

110 KW/132KW

Weight

6T

8.5 T

11T

17.5T

21T

L*W*H

3.5*1.6*1.5m

4.3*1.8*1.6m

4.6*2.0*1.65m

5.3*2.0*1.7m

5.6*2.0*1.7m



Specification of XKP Series Tire Crusher

Rollers

Advantage: The material of our rollers adopts 5Cr6MnMo, which is more strong and wear resistant than alloy steel. The two rollers are grooved, the crush ability is stronger. We offer 3years warranty for the rollers.



Bearing

Advantage: Our tire crusher adopts double row long ball rolling bearing type operation mode, there are 8pieces rolling bearing inside. This kinds of operation mode not only greatly reduce the friction and heat of the equipment, improve the work efficiency and working life of the equipment, but also reduce the energy loss, save 1/3 power consumption than traditional rubber equipment.



6.Auxillary equipments

7.Fiber Separator





--7. TFS1000 Fiber separator

Name

Technical parameter

Motor power

5.5 KW

Air blower power

7.5KW

Capacity

800-1000kg/h

 L*W*H

1500*1500*3400mm

Weight

1600 kg

Function: used to separate the fiber impurities, nylon from both nylon waste tire and steel wire tires



Receiving Clients:

Our tire recycling machines have been exported to Algeria, Jordan, Turkey, Turkmenistan, Iran, Poland, Czech Republic, Tunis, Mexico, Columbia, Brazil, Kenya, Russian Federation, India, Thailand etc and have a favorable reputation by customers. Some of our customers have bought our machines more than once. It will be our big pleasure if we have an opportunity to be on service of you.

CE certificate:





Company information:

Xuchang Huarui Machinery Co., Ltd. was established in 1990, mainly engaged in the R&D and manufactures waste tire recycling machine, nail making machine and auxiliary equipment.



After years of pragmatic innovation, exploration and development, Xuchang Huarui Machinery Co., Ltd. has developed from a small machinery factory into a large-scale and well known machinery company.



Our main products are waste tire recycling machine, full automatic nail making machine, iron wire drawing machine, rebar straightening and cutting machine and auxiliary equipment. Our scale of production is among the best in the profession, sales network are spread out into North America, South America, Asia, Africa and Middle East, and have a favorable reputation by customers. As a professional machinery company, we always devote to produce best products and provide excellent service for customers. The satisfaction of clients and good reputation is our highest pursue.



Why choose us?





1.Guarantee : 2 years after commissioning.



2.Installation : Engineers available to service machinery overseas.



3.Wherever you are, we have experience, knowledge, and skills to meet your needs and satisfy your requirements



4.More than 20 years of experience.



5.They are our patented products and they are 1/3 energy saving!





If you are interested in our products, please feel free to contact us, we will offer the high quality product and good service to you.



Whatsapp/Wechat/Mobile: 0086 13937476212   Skype: bella.huarui
