Waste Tire Recycling Plant / Tire Recycling Rubber Powder Production Line / Reclaimed Rubber Machine

FOB Reference Price:Get Latest Price
$24,999.00 - $99,999.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
Auto400, 450 500 560 560L 660
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Construction works
Condition:
New
Type:
Tire Machine
Place of Origin:
Henan, China
Brand Name:
Huarui
Tire Machine Type:
Tire Recycling Machine
Voltage:
380V
Certification:
CE
Warranty:
2 Years
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Key Selling Points:
Energy saving
Item:
Waste tire recycling machine production line
Waste Tire Recycling Plant color:
Green blue or as client need
Waste Tire Recycling Plant Function:
making 5-40mesh rubber powder
Waste Tire Recycling Plant advantage:
energy saving 30%
Waste Tire Recycling Plant use life:
more than 15 years
Use waste tire diameter:
600MM-1250MM
Waste Tire Recycling Plant used in:
waste tires and waste rubber
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Waste tire recycling machine packing :wooden cover or as required
Port
Qingdao guangzhou shanghai tianjin shenzhen
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 To be negotiated

  Waste Tire Recycling Plant / Tire Recycling Rubber Powder Production Line / Reclaimed Rubber Machine



The Working Process:

Draw steel wire from the tire ring by Tire wire drawing machine—if the diameter of tire is bigger than 825mm, can choose to use tire cutting machine to cut the tire to several piece-- put the small tires or pieces into tire shredder to make tire blocks—put the tire blocks to the tire crusher to make rubber powder—finished rubber powder





Tire Wire Drawing Machine:

--1. TD-1200Tire wire drawing machine

Name

Technical parameter

Feed size of tire(mm)

≤φ1300

Capacity(tires/h)

30-40

Power(KW)

11

Overall dimensions(m)

4.1*0.9*1.7

Equipment weight (T)

1.8

Application: used to draw out the steel loops from the tire bead.



Whole Tire Shredder:



Application: is used for cutting whole tire to 50*50mm rubber block.



Technical parameter:

Model No.

TS-800

TS-1000

TS-1200

Feed size of tire(mm)

≤φ825

≤φ1000

≤φ1250

Output size(mm)

≤50*50

≤50*50

≤50*50

Power(KW)

22*2+4

45*2+3+1.5

45*2+4

Speed(r/min)

15

14

14

Equipment weight

9T

12T

15T





Tire cutting machine:



Application: used to cut big tires to tree pieces or smaller pieces.



Technical parameter:

Model No.

TC-1200

Feed size of tire(mm)

≤φ1200

Capacity(tires/h)

30-40

Power(KW)

11

Overall dimensions(m)

2.2*0.8*1.5

Equipment weight (T)

1.5



Crusher set:

The crusher set consists of rubber crushing mill, conveyor and main vibrating screen.

The rubber crushing mill is a set of complete machine that mainly used for grinding and powder manufacturing.

It’s equipped with alloy chilled cast iron rolls which are hard and wear-resisting. The temperature adjusting device could fill cooling water into the roller to adjust temperature to meet the technical requirement.

The machine is easy-operating, reliable with overload protection and emergency breaks; it adopts hand wheel to adjust spacing between rollers. The hourly output of the machine is 100-400 kilograms.



Technical parameter



Model No.

XKP-350

XKP-400

XKP-450

XKP-560

XKP-560L

Diameter of front roll

300 mm (groove)

400 mm (groove)

450 mm (groove)

560 mm (groove)

560 mm (groove)

Diameter of back roll

300 mm (groove)

400 mm (groove)

450 mm (groove)

510 mm (groove)

560 mm (groove)

Drum working length

500mm

600mm

760mm

800mm

1000mm

Front roll liner speed

26.2m/min

34.5 m/min

38.0 m/min

40.6m/min

44m/min

Roll ratio

1:2.5

1:2.5

1:2.5

1:2.5

1:2.5

Max roller spacing

10mm

10 mm

10 mm

10 mm

10mm

Motor power

30KW/37KW

45KW/55KW

55KW /75KW

75KW/90KW

110 KW/132KW

Weight

6T

8.5 T

11T

17.5T

21T

L*W*H

3.5*1.6*1.5m

4.3*1.8*1.6m

4.6*2.0*1.65m

5.3*2.0*1.7m

5.6*2.0*1.7m







Bearing and roller



Advantage of bearing: Our tire crusher adopts double row long ball rolling bearing type operation mode. This kinds of operation mode not only greatly reduce the friction and heat of the equipment, improve the work efficiency and working life of the equipment, but also reduce the energy loss, save 1/3 power consumption than traditional rubber equipment.





Advantage of roller: The material of our rollers adopts 5Cr6MnMo, which is more strong and wear resistant than alloy steel. The two rollers are grooved, the crush ability is stronger.





4. Grading sifter and magnetic separator :

The main function of these machines is to separate steel wire and tire rubber thoroughly. This kind of recycle grinding process features advanced technology, no waste gas and water and low operating cost.

The steel wire magnetic separation effect is more than 99.9%.

The actual power consumption of processing tires is about 150 KW/hour. And the hourly output is about 100-400 kilogram.

Name of product

Motor power

Weight

Specification

magnetic separator

1.5 KW

400 kg

permanent magnet

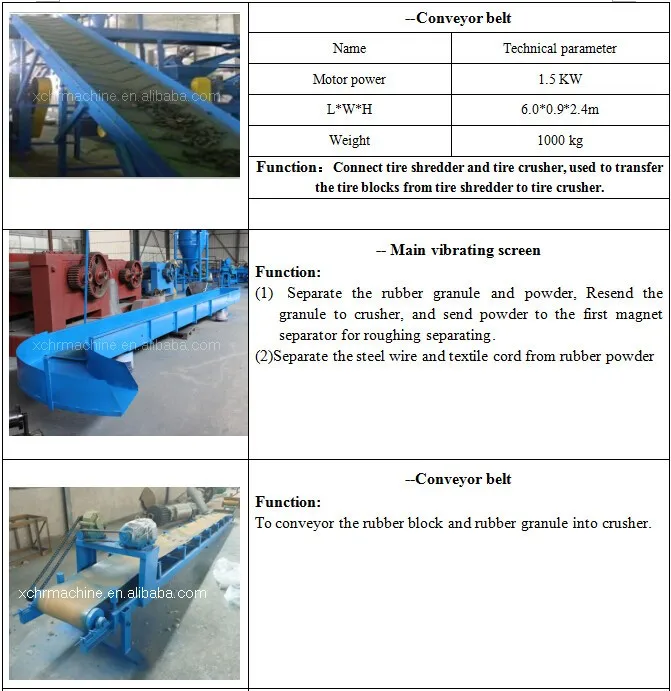

5. Other auxiliary equipments :



 Our tire recycling machines have been exported to Algeria, Jordan, Turkey, Turkmenistan, Iran, Poland, Czech Republic, Tunis, Mexico, Columbia, Brazil, Kenya, Russian Federation, India, Thailand etc and have a favorable reputation by customers. Some of our customers have bought our machines more than once. It will be our big pleasure if we have an opportunity to be on service of you.



Application of rubber powder:



Specifications

Scope of application

3-15mesh

Rubber floor bricks, plastic track, plastic sports facilities, artificial turf, poly sound insulation board, playground, gymnasium, school, kindergarten, old folk's home, ward, swimming pool, foot bridge, walk and so on

20-40mesh

Rubber color floor bricks, reclaimed rubber, sole, waterproof coiled material, Modified asphalt used in the construction of highway, all kinds of rubber vibration-insulation pad and so on

40-60mesh

Modified asphalt used in the construction of highway, all kinds of rubber product manufacture, waterproof coiled material, sports facilities, reclaimed rubber and so on

60-80mesh

Raw material of tire production from waste tire recycling machine, Modified asphalt used in the construction of highway, reclaimed rubber, conveyor belt and so on







CE certification:





Company information:



Xuchang Huarui Machinery Co., Ltd. was established in 1990, mainly engaged in the R&D and manufactures waste tire recycling machine, nail making machine and auxiliary equipment.





After years of pragmatic innovation, exploration and development, Xuchang Huarui Machinery Co., Ltd. has developed from a small machinery factory into a large-scale and well known machinery company.





Our main products are waste tire recycling machine, full automatic nail making machine, iron wire drawing machine, rebar straightening and cutting machine and auxiliary equipment. Our scale of production is among the best in the profession, sales network are spread out into North America, South America, Asia, Africa and Middle East, and have a favorable reputation by customers. As a professional machinery company, we always devote to produce best products and provide excellent service for customers. The satisfaction of clients and good reputation is our highest pursue.



Why choose us?



1.Guarantee : 2 years after commissioning.



2.Installation : Engineers available to service machinery overseas.



3.Wherever you are, we have experience, knowledge, and skills to meet your needs and satisfy your requirements



4.More than 20 years of experience.



5.They are our patented products and they are 1/3 energy saving!





If you are interested in our products, please feel free to contact us, we will offer the high quality product and good service to you.



Whatsapp/Wechat/Mobile: 0086 13569926370
